Home » Products » Glass Wool Insulation » Glass Wool Insulation with Aluminium Foil

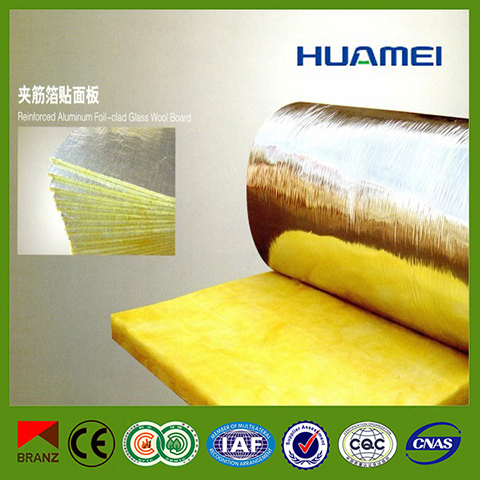

Glass Wool Insulation with Aluminium Foil

Glass Wool Insulation with Aluminium Foil
Glass Wool Insulation with Aluminium Foil
Product Code : GWB AL
Brand Name : Huamei
Price And Quantity
  • Minimum Order Quantity
  • 20 GP
  • Unit of Measure
  • Bag/Bags
  • Price Range
  • 15 - 20
Product Specifications
  • Density
  • 10-48 Kilogram per cubic meter (kg/m3)
  • Product Type
  • glass wool with Alu Foil
  • Material
  • Fiber glass
  • Width
  • 1.2 Meter (m)
  • Thickness
  • 20-100 Millimeter (mm)
  • Application
  • Insulation materials
  • Heat Conductivity
  • 0.034 Watt/Meter/K (w/(m.k)
  • Color
  • Yellow
Product Description
We are engaged in manufacturing and supplying the Glass Wool Insulation with Aluminium Foil for our valued end customers. This foil is available in 25-200mm thickness, 5000-30000mm length and 1200mm, 430mm, 580mm, 1150mm & 600mm width. Owing to its excellent fireproof & sound proof performances, it is used for making indoor partition wall, roof and train compartment. Further, this Glass Wool Insulation with Aluminium Foil can be utilized for steel structure building as it has heat insulation property.

Features:
  • Good damp resistant nature
  • Low moisture absorption
  • Stable physical properties





Main specification:

  • Length: 5000-30000mm
  • Width: 1200mm ( 430mm,600mm,580mm, 1150mm  is available)
  • Thickness: 25-200mm
  • Density: 10-48kg/m3

Excellent quality fireproof heat-insulation  Glass Wool Blanket made in China

 The Usage of Glass Wool

  • glass wool was used for building materials , and steel structure insulation
  • soundproof and fireproof  used for wall and roof  of house
  • Heat preservation for steel structure building
  • Heat Insulation for wall and roof of house to save energy
  • For indoor partition wall , Train compartment .

Different terms of Glass Wool Insulation

  • plain glass wool blanket
  • glass wool blanket with Aluminum foil -clad
  • formaldehyde-free  glass wool  heat insulation
  • glass wool with  white  pvc
  • Colorful glass wool heat  insulation
  • Performance advantages

Excellent quality fireproof heat-insulation  Glass Wool Blanket made in China

  • Good  Fire-proof  performance
  • Excellent  Damp-proof  property
  • Excellent  rebound property When  reaches the destination  will rebound almost to the  original level  in 24 hours  after been unpacked  .
  • Low moisture absorption; stable physical properties.
    Sound absorption and noise reduction; it can effectively prevent sound from spreading.
  • Non-poison,Easy for construction; cutting at will.
  • Low moisture absorption; stable physical properties.

Usage

  • Heat preservation for steel structure building
  • Heat Insulation for wall and roof of house to save energy
  • For indoor partition wall ,Train compartment .

Item

Unit

Index

Standard

Density

Kg/m³

10-80

GB/T 5480.3

Average fiber dia

µm

5-8

GB/T 5480.4

Water content

%

≤ 1

GB/T 16400-2003

Grade of combustibility


Non-combustible grade A

GB 8624-1997

Reshrinking temp

ºC

250-400

GB/T 11835-2007

Thermal conductibility

W/m.k

0.034-0.06

GB/T 10294

Hydrophobicity

%

≥98

GB/T 10299

Moisture rate

%

≤ 5

GB/T 5480.7

Sound absorption coefficient


1.03 product reverberation method 24kgm³2000HZ

GB/J 47-83

Slag inclusion content

%

≤ 0.3

GB/T 5480.5


Product

Length (mm)

Width (Diameter)(mm)

Thickness (mm)

Density (kg/m3)

Boards

1200-2400

600-1200

20-100

24-96

Blanket

11000,20000

1200

25-150

12,16,20,24,32,40,48

Batt

1160-1200

410-610

100-200

10-48


Trade Information
  • FOB Port
  • Tianjin
  • Payment Terms
  • Telegraphic Transfer (T/T), Paypal
  • Supply Ability
  • 200000 Per Year
  • Delivery Time
  • 7 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples are available
  • Packaging Details
  • 1.PP,PE woven , nylon bags outside and plastic bags inside vacuumize packaging 2.¬†As your special requirement;
  • Main Export Market(s)
  • Asia, Australia, North America, South America
  • Certifications
  • CE, BS476 , ISO , BV, A1 ,AS/NZ
