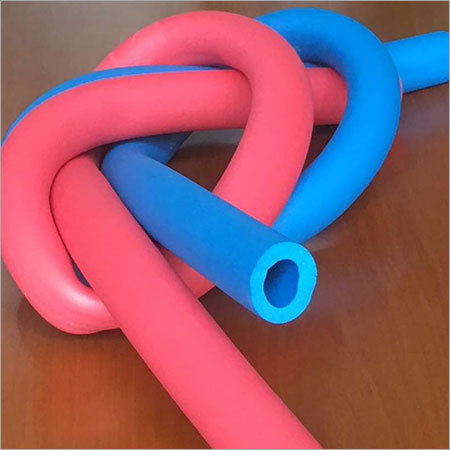

Flexible Foam Pipe

Flexible Foam Pipe
Flexible Foam Pipe
Send Inquiry
Product Code : 03
Price And Quantity
  • Minimum Order Quantity
  • 2
  • Unit of Measure
  • Box/Boxes
Product Description

Broad Range of Manufacturing:

  • The most reasonable size for pipe disengagement; with sheet width 120 and 100cm, and manufacturing in 7 distinctive thickness interims.
  • Retains vibrations that happen in the channel through its flexible structure.
  • Diminishes the utilization of conduit tape at square and round segment channels and decrease scrap rates.
  • Working temperature is from - 40/+ 120 °C.
  • Possesses a thickness of 45-60 kg/m³
  • Since heat conductivity coefficient of material is low it decreases the thermal exchange essentially (λ ≤ 0.034 W/m•K).

Product Feature

  • Huamei elastomeric Elastic froths have high heat protection esteem and are impervious to water and steam and additionally bear protection trademark from the UV beams, unforgiving climate conditions and oils. Our Froth permitting the simplicity of establishment and use with its high adaptability does not permit framing of organism and form on it.
  • Thermal porousness coefficient constitutes the most critical protection. Because of the steady air incarceratedin the cells and low thermal conductivity of our foam is given. The temperature of surface is come to the perfect an incentive by methods for the low protection esteem (0,038)
  • The materials and cell structure is produced as per the reasonable thickness (7500) and cell rate guarantees long haul protection productivity and opposes to water vapor porousness.
  • It is impervious to flame. If there should arise an occurrence of flame it doesn't enable the flares to advance in the vertical and flat course. By methods for this element it meets every one of the factors that endorsed for flame wellbeing and it is a material for insulation, so that you can apply it in your establishments and structures certainly.
  • These are elastic based, have a seamless cell structure with pores as well as are created in sheet and tube shape.

Product Description

Multi-layered shut divider cells give an inherent vapor hindrance which can't be bargained by surface tears or punctures – this guarantees the vapor boundary remains working forever of the protection framework.

Dynamic antimicrobial assurance gives included security against air contaminations in structures

The air inside structures can be more debased with air-borne contaminations than the air outside. Overabundance dampness in mix with clean and earth particles gives a perfect rearing ground to microbial development. The microorganisms themselves at that point discharge spores, cells, particles and unstable natural mixes (VOC) and subsequently may likewise add to debilitated building disorder. Among the most genuine results are an expansion in respiratory, unfavorably susceptible and asthmatic ailments, etc.

Reasonable building materials can avert soil collection, dampness entrance and along these lines shape development. As they are clean and without fiber materials, our elastic froth as of now have inactive insurance against miniaturized scale life forms. It is considerably more troublesome for germs to settle on the smooth, non-permeable surface of the material and they don't discover the supplements they have to develop. The shut microcell structure and high protection from water vapor transmission, furnish Huamei elastic froth protections with solid assurance against dampness entrance.

  • Inhibits Growth of Mould
  • Limits dampness penetration, the primary necessity for form development
  • Limits the second prerequisite: No cellulosic vapor coat and the seamless surface does not trap tidy.
  • Formaldehyde-Free
  • Guarantees that offered elastic froth is a low-discharging item. It is additionally low VOC.
  • Bolster Necessities of indoor air caliber and health.
  • Tidy and sans fiber
  • Won't transmit any particles or strands notwithstanding when cut into fittings and shapes.
  • No out gassing- HCFC and CFC proof assembling process
  • Our items have dynamic assurance against microscopic organisms, shape and mold, in this manner, fated for application in broad daylight structures, human services offices, schools and nurseries.
  • Provides Long-Term Thermal Performance
  • Non-wicking, which means zero transmission of water vapor, is conceivable through the protection because of the shut cell nature.
  • Long haul sturdiness
  • No delicate water vapor hindrance – the implicit vapor obstruction can't be "harmed" amid establishment or over the longevity of the protection.
  • Maintains a strategic distance from heat crossing over
  • Long haul power productivity
Technical Specifications:

Outer diameter of copper tube(inch)

Inner diameter of Huamei rubber tube(mm)

9mm thickness(1.8m/pc)

15mm thickness(2m/pc)

20mm thickness(2m/pc)

25mm thickness(2m/pc)

30mm thickness(2m/pc)

Size(mm×mm)

PC/carton

Size(mm×mm)

PC/carton

Size(mm×mm)

PC/carton

Size(mm×mm)

PC/carton)

Size(mm×mm)

PC/carton

1/4

6

6×9

165

6×15

70

6×20

45





3/8

10

10×9

140

10×15

60

10×20

40





1/2

13

13×9

100

13×15

55

13×20

36





5/8

16

16×9

95

16×15

40

16×20

30





3/4

19

19×9

80

19×15

40

19×20

27





7/8

22

22×9

70

22×15

35

22×20

25

22×25

22

22×30

16

1

25

25×9

55

25×15

30

25×20

25

25×25

20

25×30

16

1 1/8

28

28×9

50

28×15

30

28×20

20

28×25

20

28×30

16

1 1/4

32

32×9

45









1 1/4

34

34×9

45

34×15

25

34×20

20

34×25

16

34×30

12

1 3/8

35

35×9

40









1 1/2

38

38×9

30









1 5/8

42

42×9

30









1 5/8

43

43×9

30

43×15

20

43×20

15

43×25

12

43×30

10

1 7/8

48

48×9

28

48×15

20

48×20

15

48×25

12

48×30

10

2 1/8

54

54×9

25









2 3/8

60

60×9

20

60×15

18

60×20

12

60×25

12

60×30

8


76

76×9


76×15

15

76×20

10

76×25

10

76×30

7


89

89×9




89×20

8

89×25

8

89×30

6


108

108×9




108×20

6

108×25

6

108×30

4

Class 1 Technical Index

Item

Unit

Technical Index

Standard

Density

Kg/m³

≦95

GB/T 6343

Flammability

B1 grade

Oxygen index

%

≧32

GB/T 2406

SDR


≦75

GB/T 8627

Conductivity factor

Average temperature

-20℃

0℃

40℃

w/m•k



≦0.031

≦0.034

≦0.036

GB/T 10294

Water vapor permeability

Coefficient

g/(m•s•pa)

≦2.8×10ˉ¹¹

GB/T 17146-1997

Factor


≦7.0×10³

Water absorption ratio in vacuum

%

≦10

GB/T 17794-2008

Dimension stability 105±3℃,7d

%

≦10

GB/T 8811

Crack resistance

N/cm

≧2.5

GB/T 10808

Compression resilience ratio

Compression ratio 50%

Compression time 72h

%

≧70

GB/T 6669-2001

Anti-ozone

Ozone pressure 202mpa 200h


Not cracking

GB/T 7762

Aging resistance 150h


Slightly crumpling,no cracks ,no pin holes ,not deforming

GB/T 16259

Temperature

-40℃-110℃

GB/T 17794

Environmental conditions

Dimension of heat-preservation pipe

Suitable thickness at temperature of piping(mm)

Temp

Relative Humidity

Inch

millimeter




13℃

7℃

3℃

-15℃

26.5℃



50%

3/8-3

10-76

10

10

10

15

3-5

76-127

15

15

15

15

5-10

127-254

15

15

15

20

29℃

70%

3/8-3

10-76

10

15

15

20

3-5

76-127

15

15

15

20

32℃

80%

5-10

127-254

15

15

15

25

3/8-5

10-127

15

15

20

20

5-10

127-254

20

25

25

35

32℃

85%

3/8-1 1/2

10-38

20

25

30

45

85%

38-76

20

30

30

50

3-5

76-127

20

30

35

60

5-10

127-254

25

30

40

60

>10

>254

30

40

45

70

32℃

90%

1/8-1/2

3-13

25

32

35

45

90%

13-64

30

35

45

60

2 1/2-5

64-127

30

35

45

65

5-10

127-254

35

45

50

75

>10

>254

35

50

60

75



Trade Information
  • FOB Port
  • TIANJIN PORT
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
